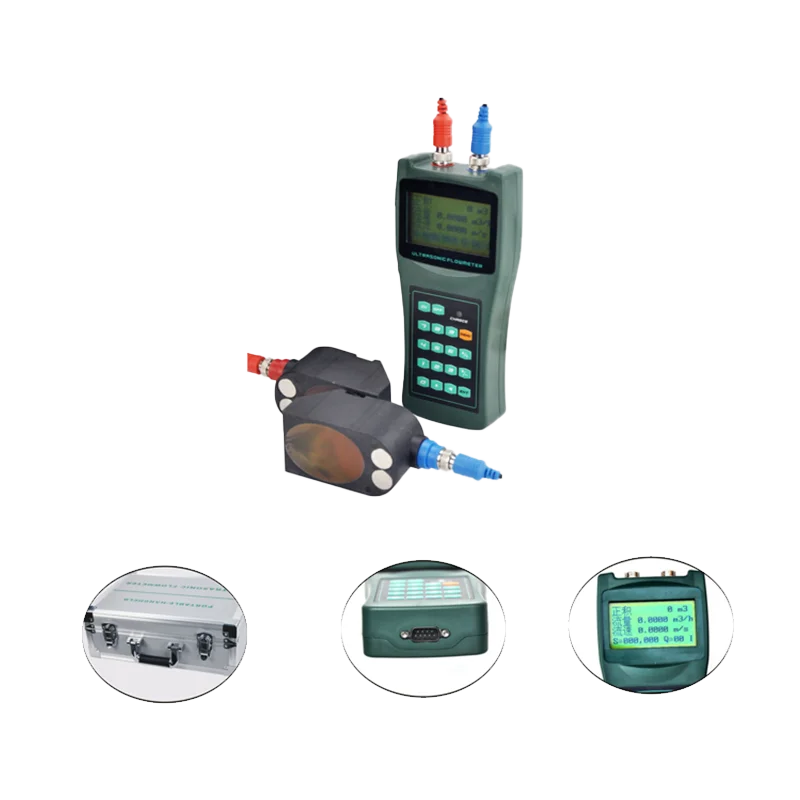

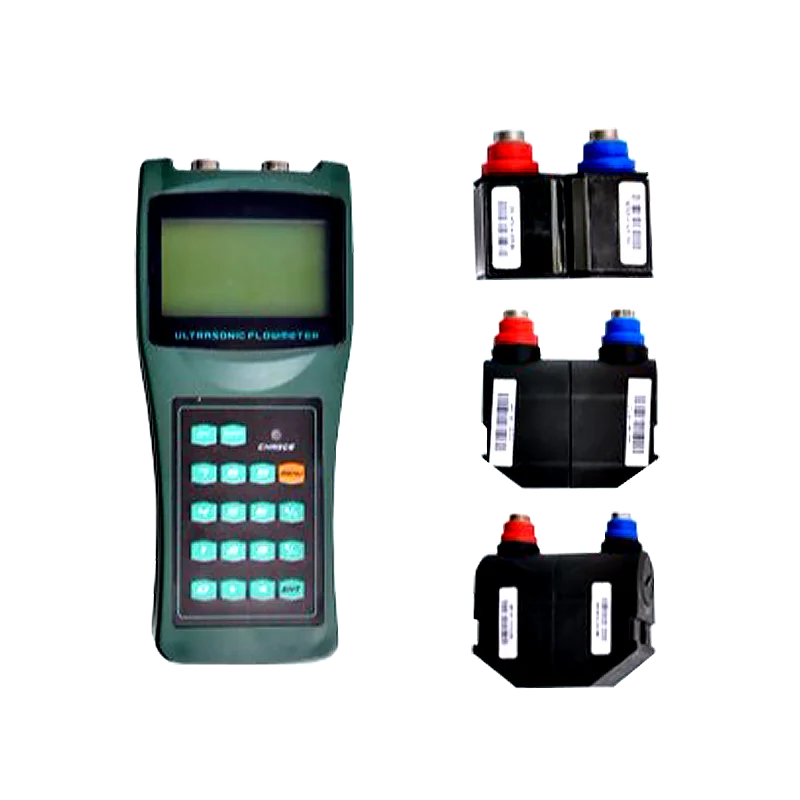

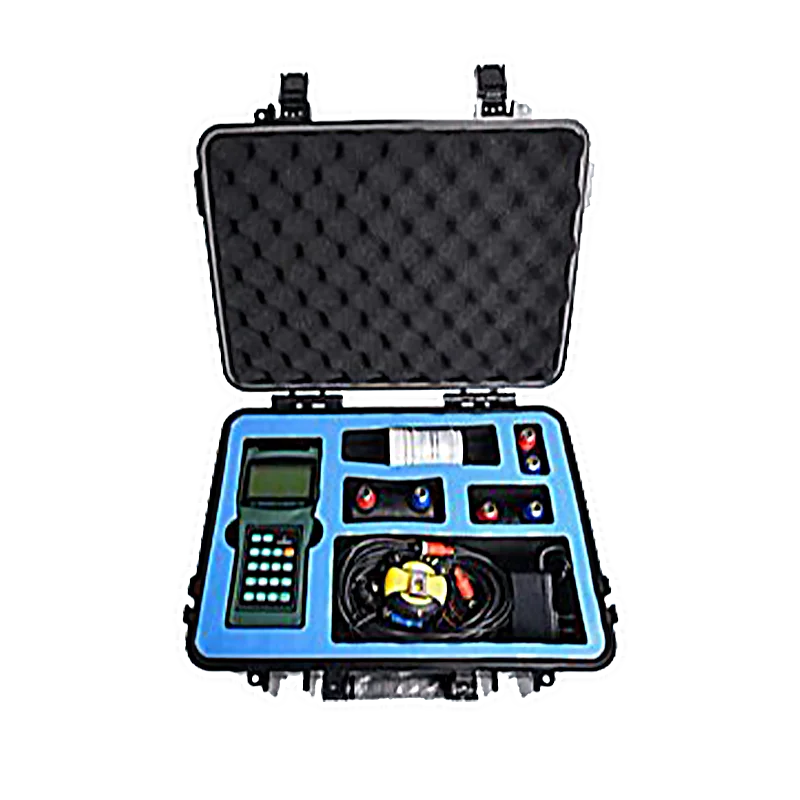

DPLDS-100H portable handheld ultrasonic water flowmeter DN25~DN1200 portable gas flow meter
The DPLDS-100H handheld ultrasonic flowmeter is compact and lightweight, allowing for flow measurement anytime and anywhere. The design of a rechargeable battery and universal power supply frees you from power limitations. It adopts the principle of time difference, advanced digital correlation technology, and intelligent adaptive acoustic technology, making its measurement stability more prominent. At the same time, it adopts proprietary sound focusing technology, which significantly enhances its signal reception and quality during continuous measurement.

Features:

Measuring pipe diameter range: DN25~DN1200 Modular integrated design with independent menu operation Magnetic suction type external clamp installation, simple and convenient Small, lightweight, and easy to use LCD backlight, 4-line bilingual display in Chinese and English Positive and negative flow measurement, cumulative flow SD card function, 8.8 million sets of data storage (recording up to 512 days of historical data) The protection level of the transmitter reaches IP65, and the protection level of the sensor reaches IP68 Lithium ion batteries and universal power supply design, supporting 24/7 use of the product
Technical Parameter
Standard HS type
Standard HM type
Standard S2 type
Standard M2 type
Standard L2 type
Applicable pipe diameter (mm)
15~100
50~700
15~100
50~700
300~600
material quality
aluminum alloy
Plastic alloy
Operating Frequency
1MHz
Common installation methods
V(N、W)-method
V. Z-method
V(N、W)-method
V. Z-method
Z-method
calibration
Complete machine pairing calibration
magnetism
possess
Temperature
0℃~160℃
protection grade
IP65
Overall dimensions (mm)
200x25x25
280x40x40
45x30x30
71x37x40
91x52x44
Mass (g)
250
1080
75
259
535
Media type
A single, uniform, and stable liquid that can transmit ultrasonic waves, such as water, seawater, sewage, alcohol, and various oils
Medium turbidity
≤ 20000ppm with low bubble content
Applicable pipes
Carbon steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other uniformly dense pipelines are allowed to have lining
Pipeline lining material
Epoxy asphalt, rubber, mortar, polypropylene, polystyrene, bakelite, polytetrafluoroethylene, etc
signal cable
Standard configuration: 5 meters x 2; Optional with 10 meter x2 or 15 meter x2
About us

Doppel Instruments (Guangzhou) Co., Ltd is an innovative technology enterprise that focuses on the research and development, production, sales, and technical services of fluid measurement intelligent instruments.
Since its establishment, the company has actively promoted product research and innovation, with R&D personnel accounting for over 60%. The R&D team comes from well-known enterprises and institutions in Germany, the United States, Canada, and China. The technical backbone has served the Fortune 500 and has over ten years of industry experience.
The company has intelligent and modern production workshops, advanced automation equipment, and high-precision calibration devices. The three major series independently developed and produced by the company, with over ten products, have been widely applied in various industries such as automotive manufacturing, home appliance manufacturing, optoelectronics, food, chemical, thermal power, building materials, metallurgy, textiles, printing and dyeing, etc., meeting the customer needs of various industries.
The company always adheres to the corporate values of "achieving customers, sincerity, and innovation", and wholeheartedly provides users with precise and efficient overall solutions and services, achieving rapid response to customer needs, achieving efficiency improvement, and assisting in intelligent manufacturing.
Our Service

Service process

1. Pre sales service Before signing the contract, the company provides technical consultation, sample testing, equipment selection and other services to customers. 2. Installation and debugging Safely transport the equipment to the installation location designated by the customer within the specified time, and dispatch technical engineers to the site for installation. If the installation and debugging conditions are basically met on site, the technical engineer will complete the equipment installation and debugging within 1-2 days, and ensure that the installation site environment is clean and tidy. 3. After sales training After installation and debugging, the company provides free technical training to operators on site until they can use the equipment normally. The training content includes training on operating procedures, basic cleaning and maintenance of the machine, and handling common hardware faults. 4. Equipment maintenance Provide one-year free equipment warranty, free technical consultation, software upgrade, and lifelong maintenance services. Timely respond to customer needs within 24 hours.

Testing and Calibration Services

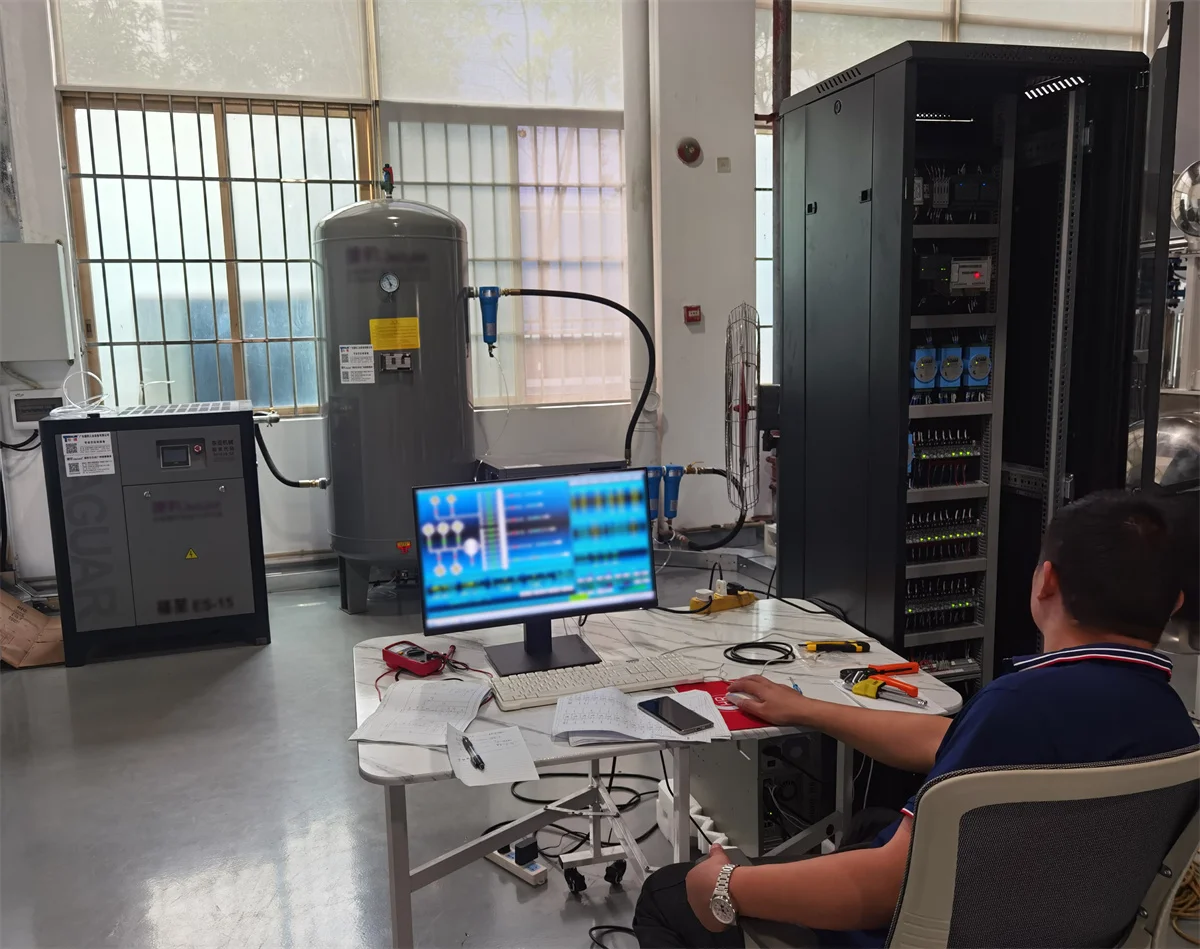

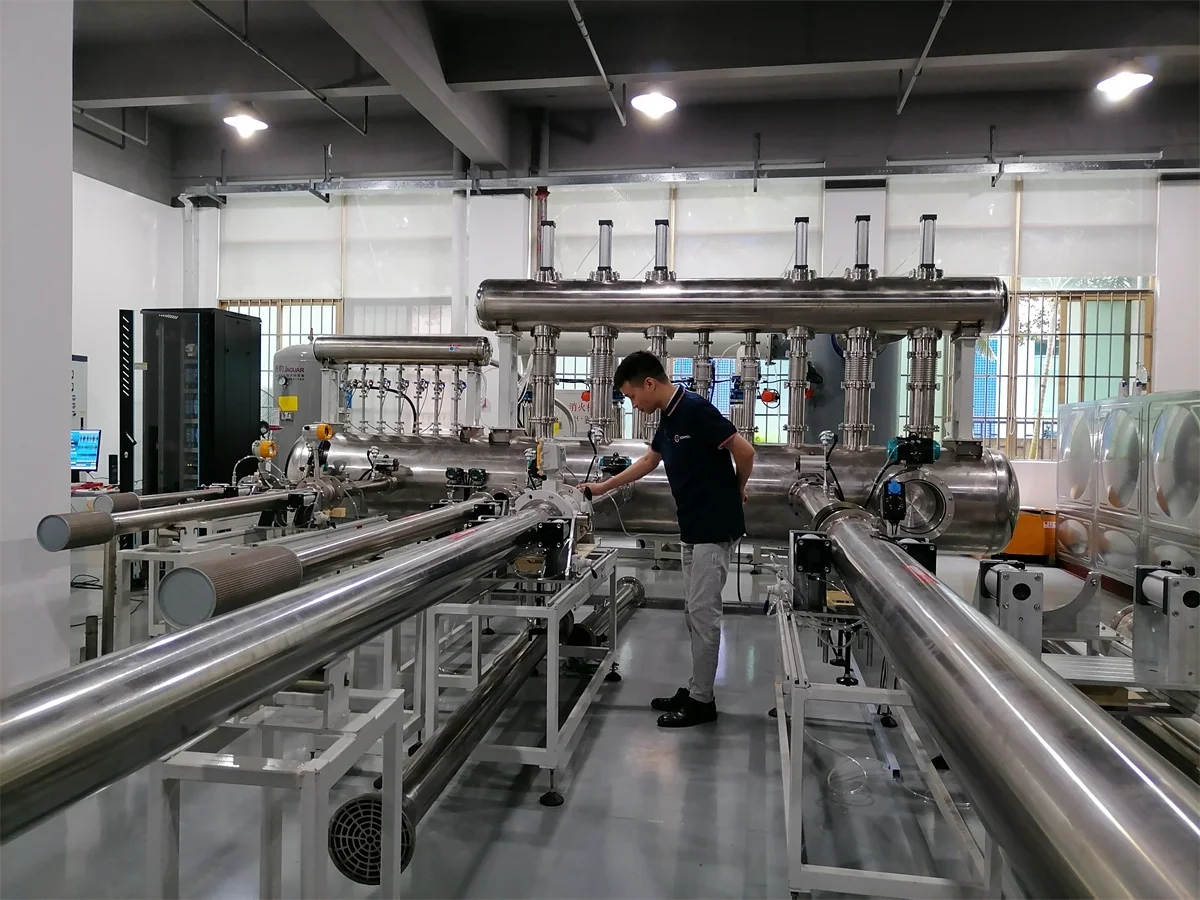

1. Doppel Company provides calibration and on-site testing services for all sensors. Calibration services can be provided at any time, and calibration reports can be issued at the same time. 2. Flowmeter calibration services are all completed in the Doppel testing and calibration laboratory. All calibration reference equipment can be traced back to the National Standards Center and regularly recalibrated to ensure the reliability of calibration.

Service Commitment

1. Our company promises that the equipment provided is brand new, unused, made of high-quality materials, combined with mature technology, and meets national industry standards in terms of quality, performance, and specifications. 2. From the date of acceptance, Doppel Instruments provides a one-year quality guarantee. If you need to extend the warranty, please contact your sales representative directly. 3. After installation and debugging, the company provides free technical training to operators on site until they can use the equipment normally. 4. Provide one-year free equipment warranty, free technical consultation, software upgrade, and lifelong maintenance services. Timely respond to customer needs within 24 hours.
Payment and Shipping

We accept Western Union, T/T, and PayPal
We cooperate with DHL, Fed Ex, TNT, EMS, etc. You can receive the goods within 3 to 5 days.



Packaging & Delivery

  • Delivery Lead Time : 60 days for OEM, 7 days for ready goods
  • Supply Ability : 6000 Set/ Sets per Month
